● Payload up to 10 kg;
● For sorting, transporting and assembling etc.;
● Self-locking mechanism;
● 2 models for option
LANGAN® Robotic Tool Changer Catalog
LANGAN® LA-RTC10 Robotic Tool Changer Selection Guide
Robot Tool Changer, known as robot quick change system, robotic connector and robotic coupler, is one type of robot end-of-arm tools (EOAT). In some cases, it is also called robot end effectors.
The Robot Tool Changer can carry different payloads with outstanding flexibility and accuracy for any automated process to change tools.
LANGAN® LA-RTC-10 Automatic Robot Tool Changer (ATC) with 10kg Payload, end-of-arm tooling solutions, provides flexibility and efficiency.

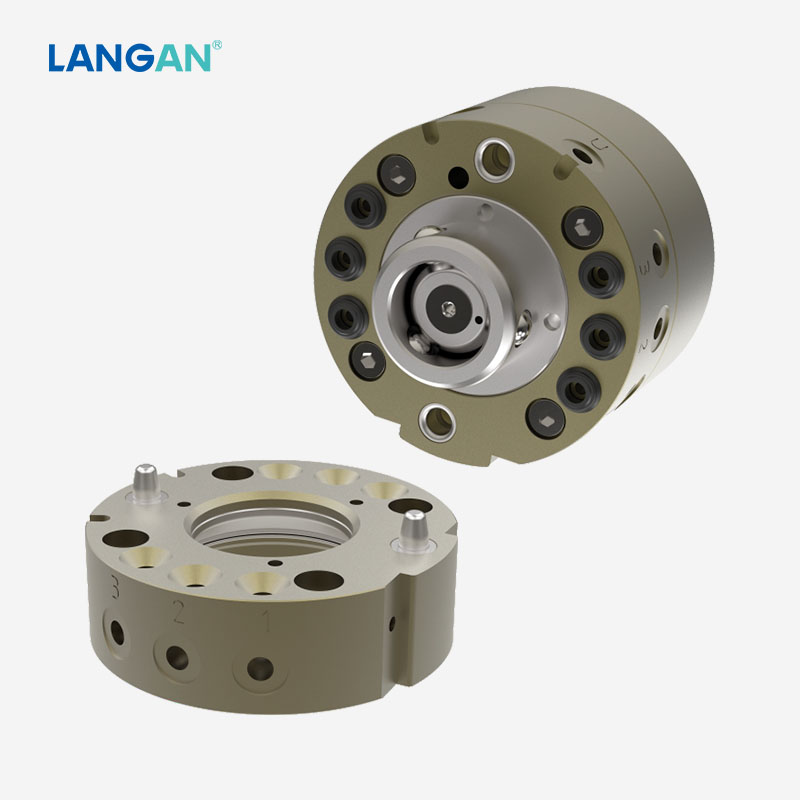

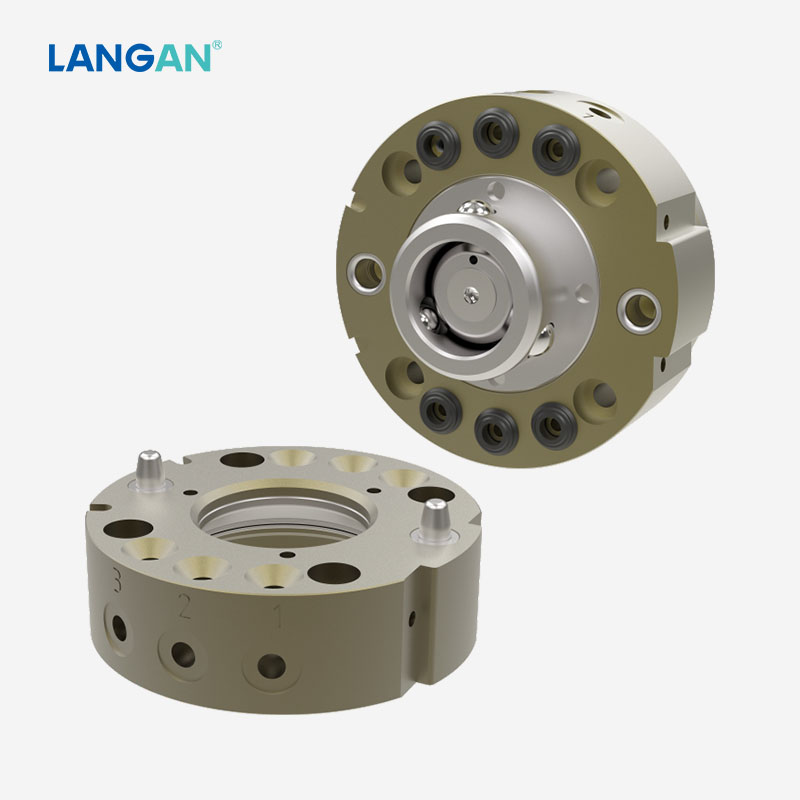

● 2 optional models: LA-RTC10B and LA-RTC10C
1. Technical data
| Product name | LANGAN® LA-RTC10 Automatic Robot Tool Changer with 10kg Payload | |||
| Main body | LA-RTC10B | LA-RTC10C | ||
| Rated payload | 10kg | 10kg | ||
| Static moment (X&Y) | 22.5 N.m | 22.5 N.m | ||
| Static torque (Z) | 22.5 N.m | 22.5 N.m | ||
| Locking force | 822N | 822N | ||
| Housing size when locking | Φ 65*48.1 mm | Φ 65*64 mm | ||
| Position repeatability accuracy (X, Y &Z) | ±0.02mm | ±0.02mm | ||
| Weight | Master plate | 260g | 380g | |
| Tool plate | 170g | 170g | ||
| Material | Material of Main body | Aluminium alloy | Aluminium alloy | |
| Material of Locking mechanism | Steel alloy | Steel alloy | ||
| Locking mechanism | Ball locking | Ball locking | ||
| Pilot pressure | 0.4-0.7Mpa | 0.4-0.7Mpa | ||
| Penumatic port | M5 (6 ports) | M5 (6 ports) | ||
| Pilet inlet | M5 | M5 | ||
2. Features:
∗ Common features for LA-RTC10B and LA-RTC10C:
● Payload up to 10kg;
● 1 position for module mounting, and 6 pneumatic ports of M5;
● For sorting, transporting and assembling etc.;
● With self-locking function to prevent master plate and tool plate from being seperated due to accidental cut-off of air supply;
∗ Special features for LA-RTC10C:
● With 2 proximity sensors to monitor the locking and unlocking state at real time
● Directly mounted on robot flange as per IS09409

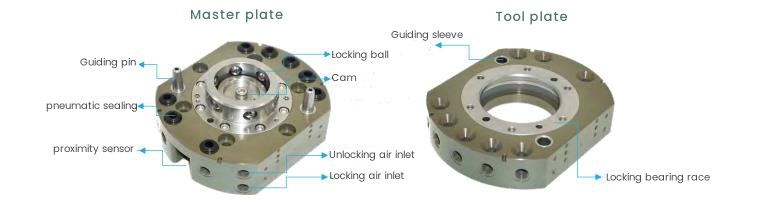

3. Structure of LA-RTC10 Robot Tool Changer:
A Robot Tool Changer consists of a master plate and a tool plate, which are designed to lock together automatically. The Master plate of the Tool Changer mounts to a robot. The tool plate of the Tool Changer mounts to toolings of grippers, welders, or deburring tools etc.
The robot tool changer allows the robot to switch from one tool to another quickly, accurately and efficiently.
4. LA-RTC10 Robot Tool Changer dimensional drawings:

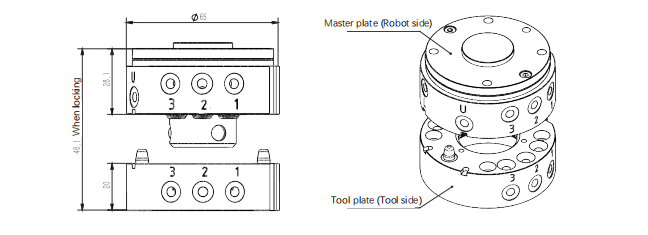

LA-RTC10B：

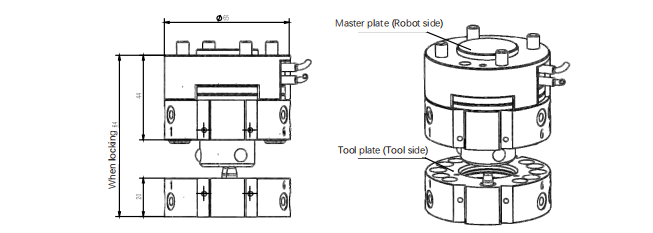

LA-RTC10C:
5. Mounting hole diagrams:

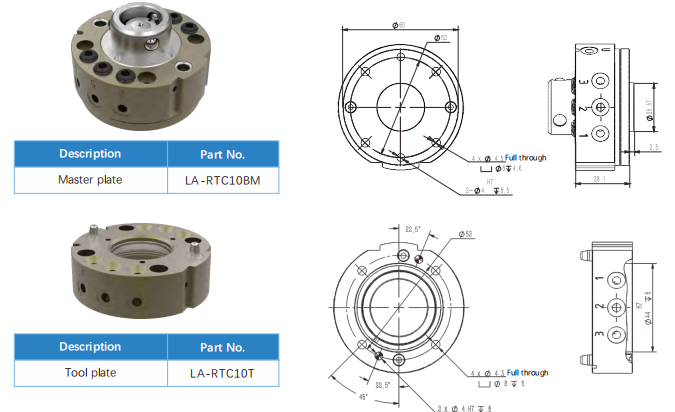

LA-RTC10B:

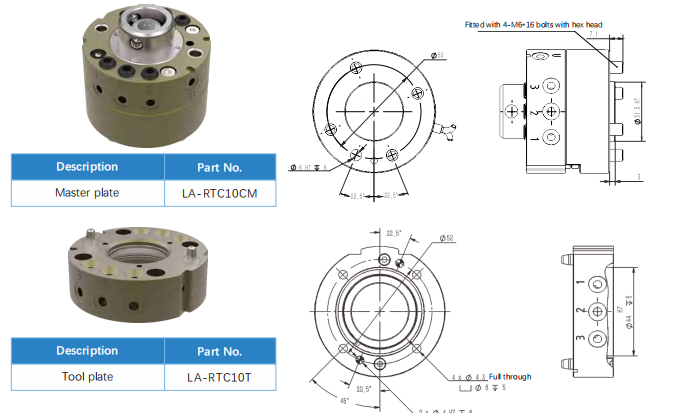

LA-RTC10C:
6. Signal and control modules:
 |
Master plate | LA-D011M | 15 cores, 3A DC 24V |
| Tool plate | LA-D011T |
7. Working environmental conditions:
• Ambient temperature: 0℃ ~ 60 ℃ • Humidity: 0~95%
Robotic tool changers should be able to operate within a specific temperature range to ensure optimal performance and lifespan. It is advisable to consider the environmental conditions of your automation system and select a tool changer that can withstand these conditions.
Note: Please indicate to us when ordering if substances, such as dust, iron particles and acid gas etc, are present in the working environment.
8. Ordering:
As a supplier of Robot Tool Changer, LANGAN® Robot Tool Changer models cover an extensive range of applications, from very small payloads 10kg to heavy payload 630kg. Custom-tailored robot tool changer models are available on request.
If you are interested in our Robot Tool Changer, Please feel free to inquire us.
